ESC BL-2S Waterproof Fwd/Rev: 3383

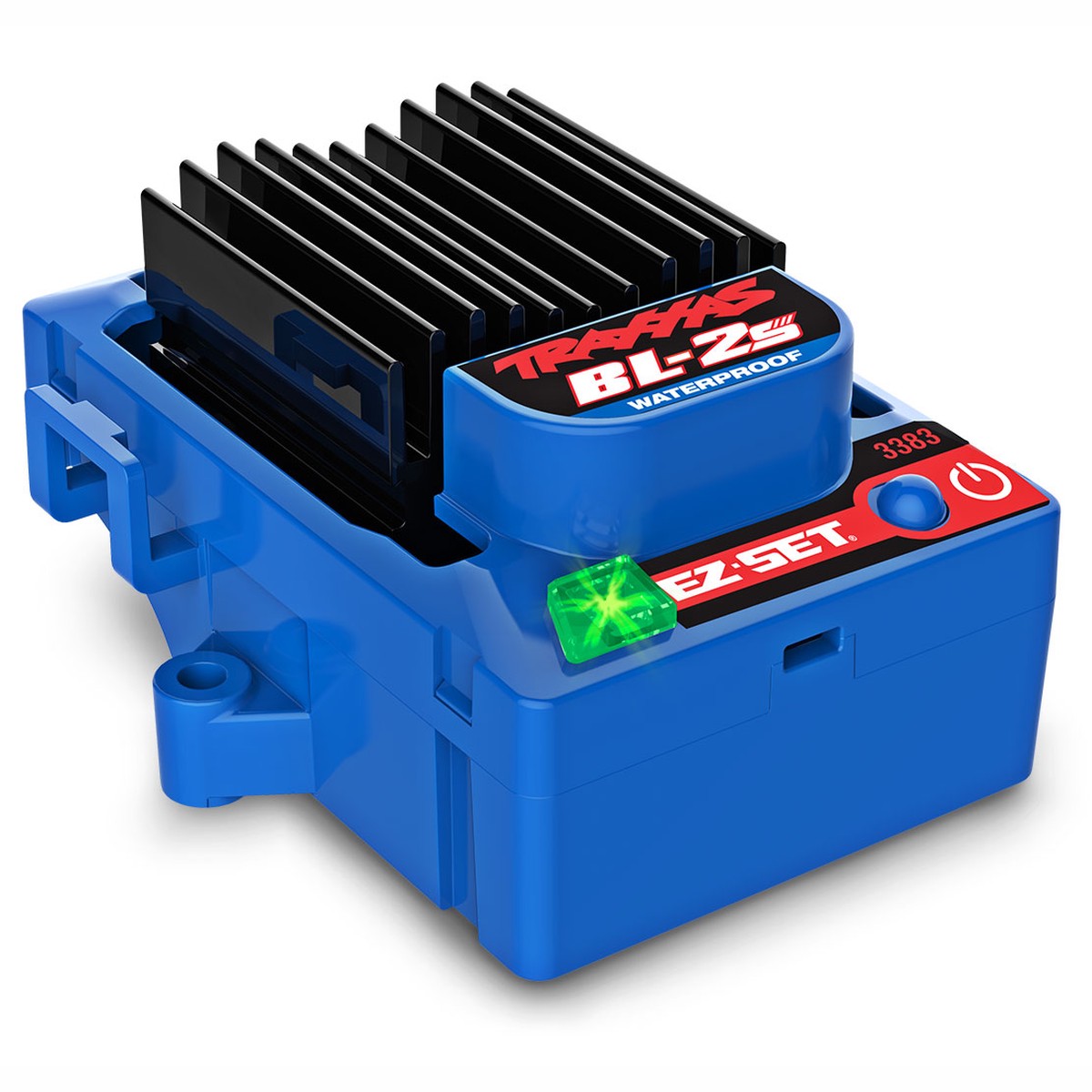

BL-2s Brushless Electronic Speed Control

Overview:

The waterproof BL-2s speed control delivers all the benefits of brushless technology with the safety and convenience features you expect from Traxxas. Built-in low-voltage detection, thermal shutdown protection, and EZ-Set one button programming make BL-2s reliable and easy to operate.

Features:

• Fully waterproof
• Built-in two-stage low voltage detection for lithium polymer (LiPo) batteries
• NiMH battery packs 6-7 cells (7.2 – 8.4 V) or 2-cell LiPo battery packs (7.4 V)
• Patented Training Mode reduces the power output by 50% for new or younger drivers. When they’re ready, simply change profiles to unleash full-throttle action.
• EZ-Set one-button setup operates and programs just like other Traxxas speed controls
• Three programmable drive profiles:
• Sport Mode Fwd / Brake / Rev
• Race Mode Fwd / Brake
• Training Mode 50% Fwd / Brake / 50% Rev
• Multi-color status LED
• Two-stage thermal shutdown protection protects the BL-2s from overheating
• Large aluminum heatsink dissipates heat
• Built-in auxiliary fan output
• Keyed motor connector

This is a replacement part for the following Traxxas models:

• 4-Tec 2.0 Brushless AWD Chassis: TQ 2.4GHz Radio (Model# 83124-4)
• BIGFOOT 4X4 Brushless Officially Licensed Replica: TQ 2.4 GHz Radio (Model# 67134-4)
• BIGFOOT No. 1 Officially Licensed Replica: TQ 2.4 GHz Radio (Model# 36334-4)
• Ford F-150 Raptor: TQ 2.4GHz Radio (Model# 58394-4)
• Ford Fiesta ST Rally Brushless: TQ 2.4GHz Radio (Model# 74154-4)
• Jato 4X4 Brushless: TQ 2.4GHz Radio (Model# 90154-4)
• Mini Maxx: TQ 2.4 GHz Radio (Model# 107154-1)
• Rustler 4X4 Brushless: TQ 2.4GHz Radio (Model# 67164-4)
• Rustler Brushless: TQ 2.4 GHz Radio (Model# 37354-4)
• Slash 4X4 Brushless: TQ 2.4GHz Radio (Model# 68154-4)
• Slash Brushless EHD: TQ 2.4GHz Radio (Model# 58334-4)
• Slash Brushless Unassembled Kit: TQ 2.4GHz Radio (Model# 58314-4)
• Slash Modified: TQ 2.4GHz Radio (Model# 104354-74)
• Stampede 4X4 Brushless: TQ 2.4GHz Radio (Model# 67154-4)
• Stampede Brushless: TQ 2.4 GHz radio (Model# 36354-4)
• Toyota GR Supra GT4: TQ 2.4GHz Radio (Model# 93164-4)
